AUTOMOTIVE TESTER

Automotive Tester

AUTOMOTIVE TESTER

Automotive ECU · Headlamp
EOL · CPU writing · optical unified

Integrated automotive inspection equipment spanning End-of-Line testing, inline CPU · EEPROM writing, and headlamp photometric / light-distribution testing for ECUs in Genesis · K5 · Sorento · Kona · Audi A3 · Ford and other global OEM vehicles. Custom test items per model — CAN communication, HSM Lock, multi-channel measurement, photometric and distribution inspection, etc.

  • 11PRODUCTS
  • CANPROTOCOL
  • HSMLOCK
  • 100%ENG. DESIGNED

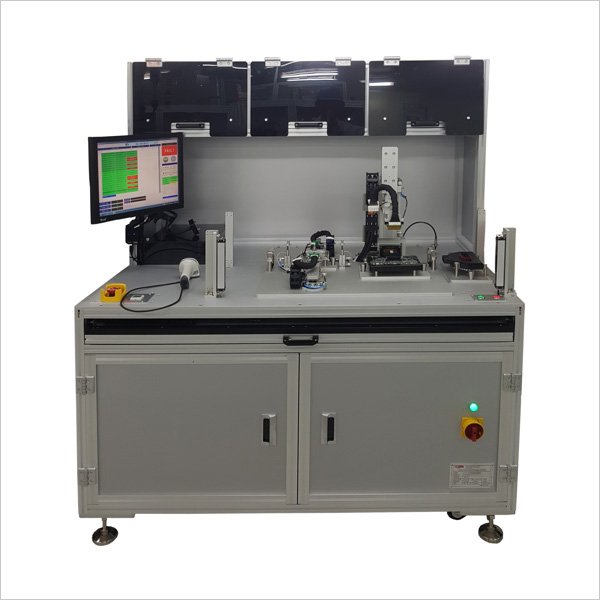

RG3 LDM EOL Tester
RG3 · ILCU EOL Genesis G80

RG3 LDM EOL Tester

CAN-based ILCU & IFS simultaneous/individual inspection. Per-LED current measurement of 16 LEDs and vehicle height sensor output in a single cycle.

Key Features · Test Items
  • Lamp control via CAN communication
  • ILCU & IFS simultaneous or standalone inspection
  • Fast inspection via multi-channel current & voltage meters
  • Simultaneous per-LED current measurement of 16 LEDs
  • CAN comm. validity · input/output current · Fade In/Out
  • Vehicle height sensor input · FAN operation test

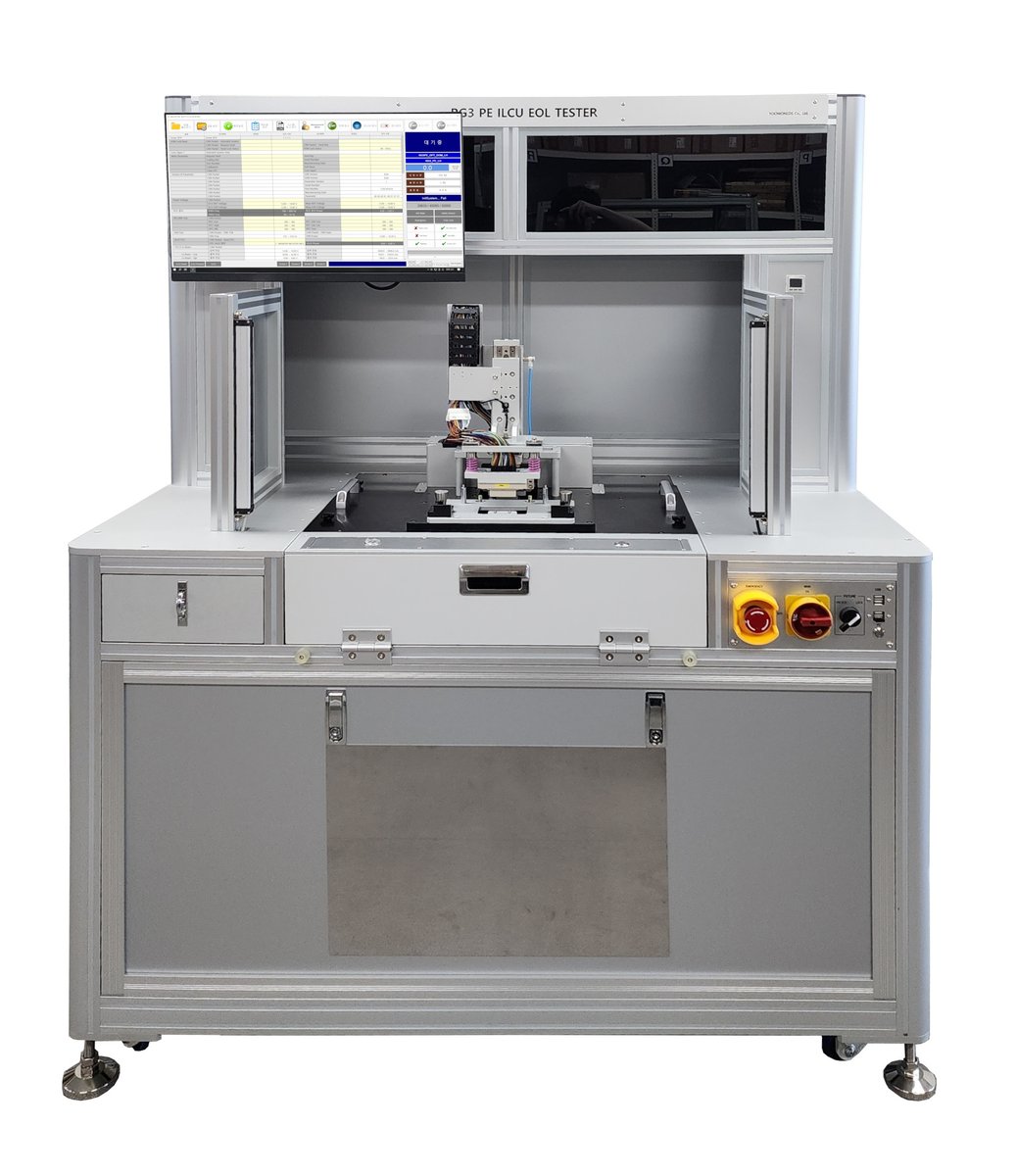

RG3PE LDM EOL Tester
RG3-PE · ILCU EOL Genesis G80 3rd Gen

RG3PE LDM EOL Tester

Dedicated to Genesis G80 3rd Gen. Pre-shipment final test for next-generation ECU including HSM Lock verification.

Key Features · Test Items
  • Lamp control via CAN communication
  • Fast inspection via multi-channel current & voltage meters
  • Vehicle height sensor output
  • CAN comm. validity · input/output current
  • Vehicle height sensor input · FAN operation test
  • HSM LOCK R 검사
MQ4-PE LDM EOL Tester
MQ4-PE · LDM EOL KIA SORENTO

MQ4-PE LDM EOL Tester

Two-cavity simultaneous inspection + oscilloscope-based timing/voltage measurement. Swappable fixture + automatic barcode.

Key Features · Test Items
  • Two-cavity simultaneous inspection
  • Time/voltage measurement via oscilloscope
  • Swappable fixture
  • Automatic barcode input
  • Input/output current · Tell-Tale voltage inspection
  • Sequential lighting inspection (oscilloscope)

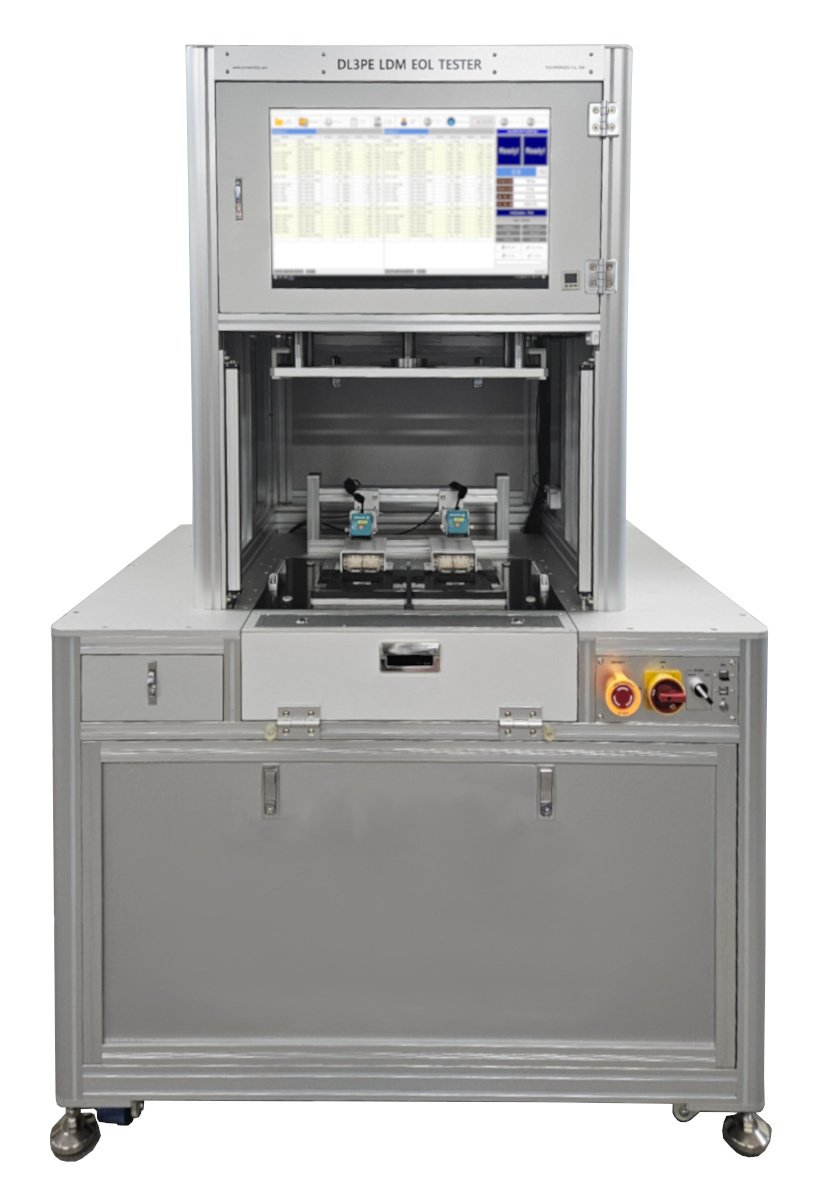

DL3 LDM EOL Tester
DL3 · LDM EOL KIA K5

DL3 LDM EOL Tester

K5 two-cavity simultaneous inspection. Tell-Tale voltage / automatic barcode input.

Key Features · Test Items
  • Two-cavity simultaneous inspection
  • Tell-Tale voltage inspection
  • Automatic barcode input
  • Input & output current inspection

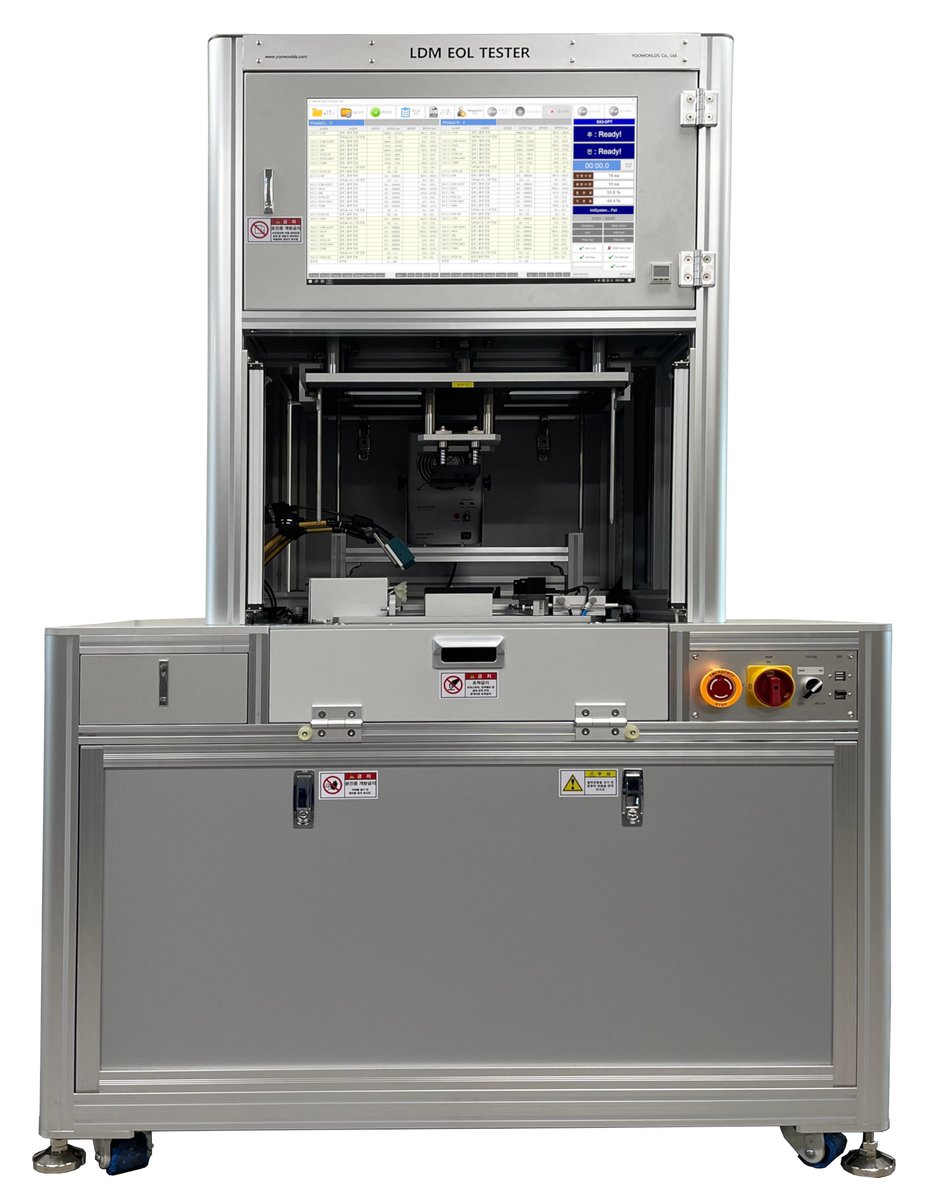

SX2 LDM EOL Tester
SX2 · LDM EOL KIA KONA

SX2 LDM EOL Tester

KONA two-cavity simultaneous inspection. Tell-Tale voltage / automatic barcode input.

Key Features · Test Items
  • Two-cavity simultaneous inspection
  • Tell-Tale voltage inspection
  • Automatic barcode input
  • Input & output current inspection

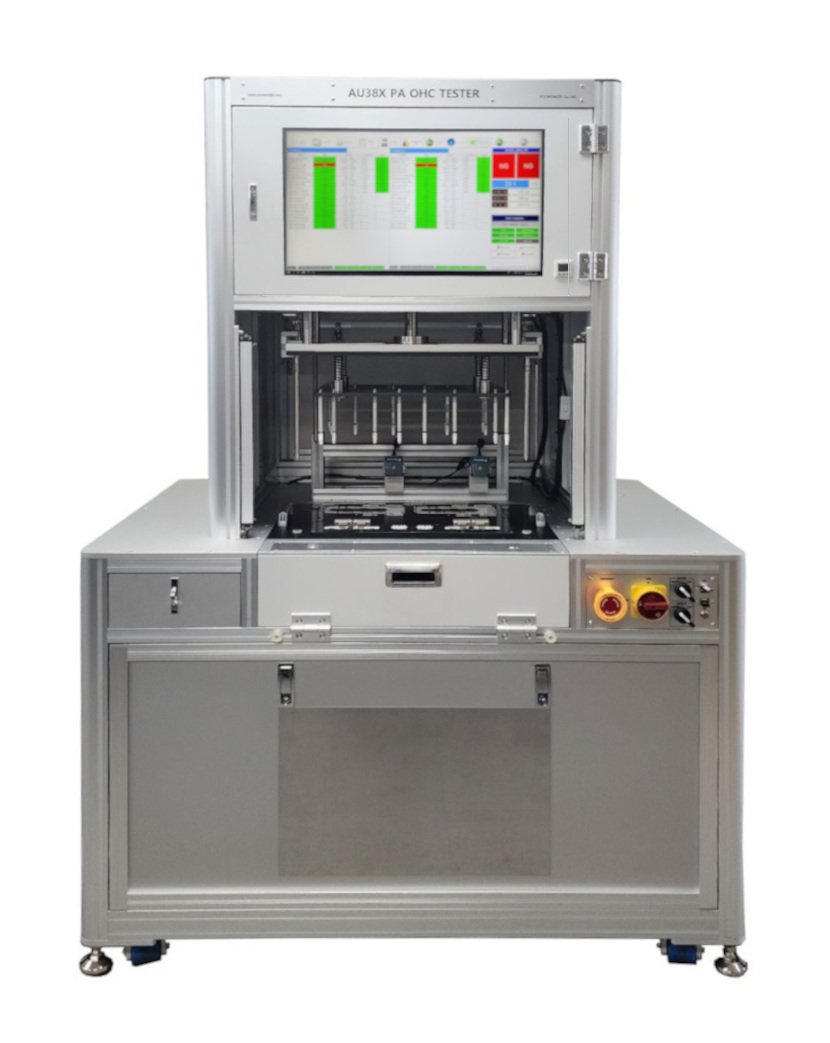

AU38X-PA EOL Tester
AU38X-PA · EOL AUDI A3 interior light panel

AU38X-PA EOL Tester

Dedicated to AUDI A3 interior light control panel. Integrated inspection of Touch · Tact Switch · LED wavelength · chromaticity.

Key Features · Test Items
  • Two-cavity simultaneous inspection
  • LED wavelength & lighting state inspection
  • Automatic & manual barcode input
  • Touch / Tact Switch operation inspection
  • Color inspection via LED wavelength measurement
  • Sequential operation inspection

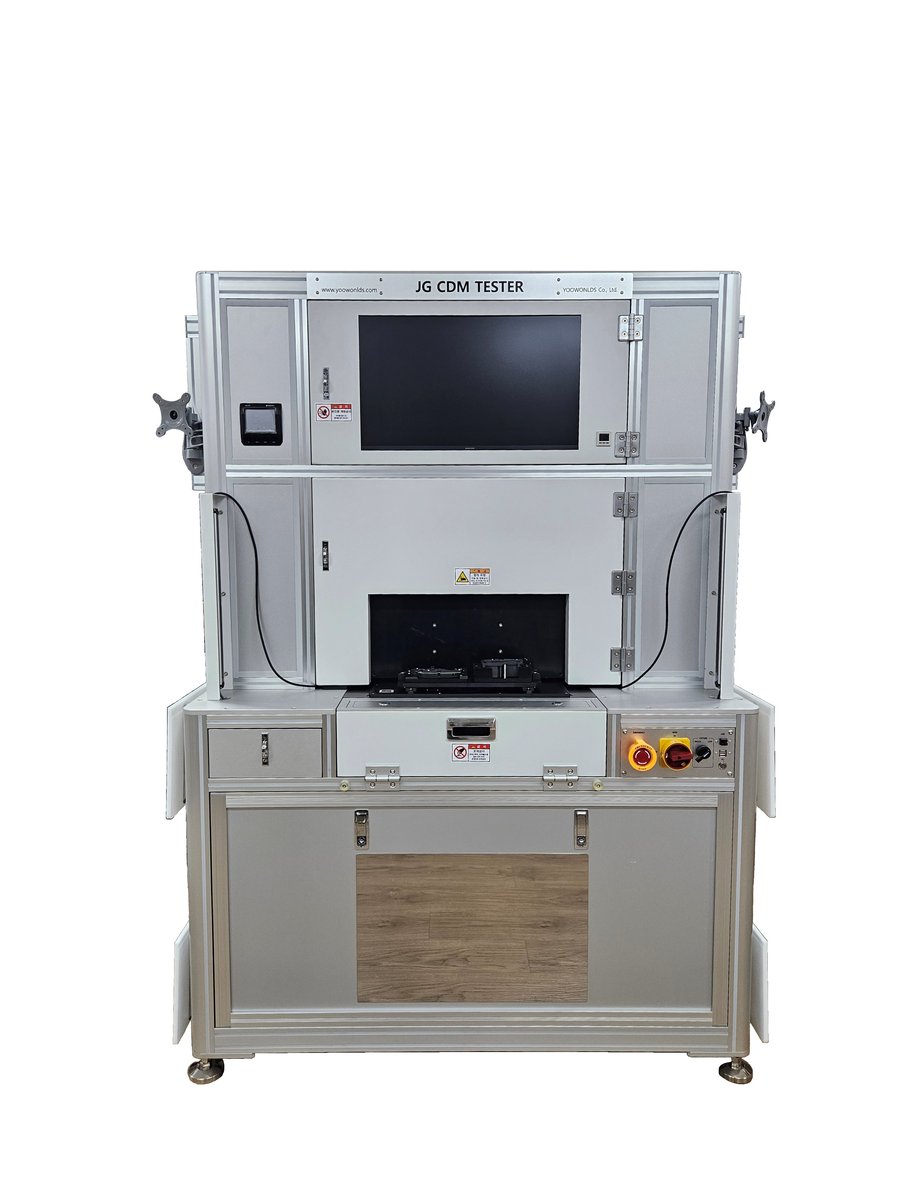

JG CDM TESTER NEW
JG · CDM TESTER Charge indicator / door latch

JG CDM TESTER

Simultaneous Indicator + Actuator inspection. Hall-sensor voltage by angle / short circuit test + automatic barcode print.

Key Features · Test Items
  • Simultaneous Indicator + Actuator inspection
  • Indicator LED lighting & illuminance inspection
  • Actuator Hall-sensor voltage by angle · short test
  • Indicator LED brightness · chromaticity measurement
  • Actuator Hall-sensor voltage measurement by angle
  • Barcode print (Part Number · S/W · H/W · production date)

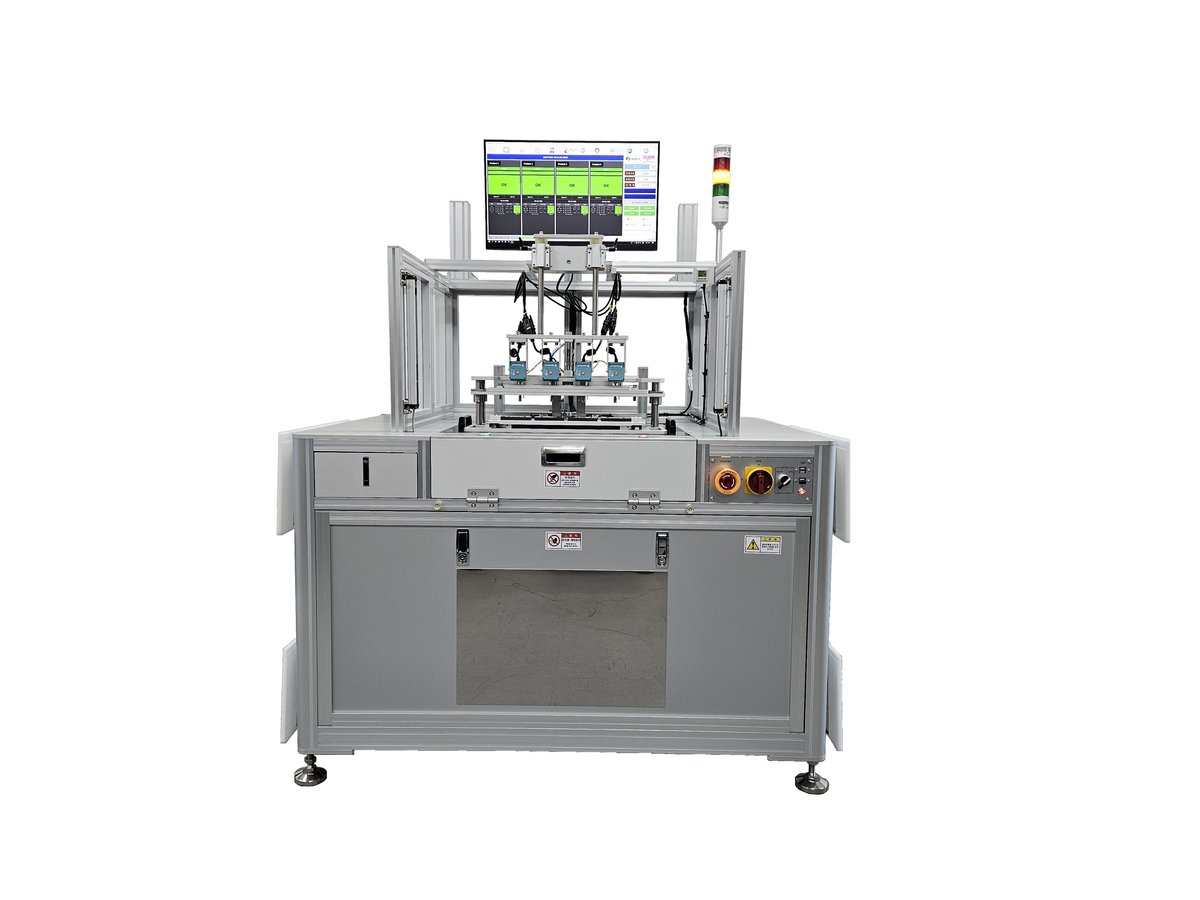

Adapter FCT TESTER NEW
ADAPTER · FCT TESTER EV charging thermal protection device

Adapter FCT TESTER

Supports NACS / CCS1 PCB adapters. TOC Switch (Bimetal) characteristic test + resistance / short test.

Key Features · Test Items
  • Verify normal operation of temperature-sensing switch
  • Resistance inspection
  • Supports NACS / CCS1 PCB Adapters
  • TOC Switch On/Off operation test (Bimetal characteristic)
  • Verify resistor values
  • Short-circuit inspection

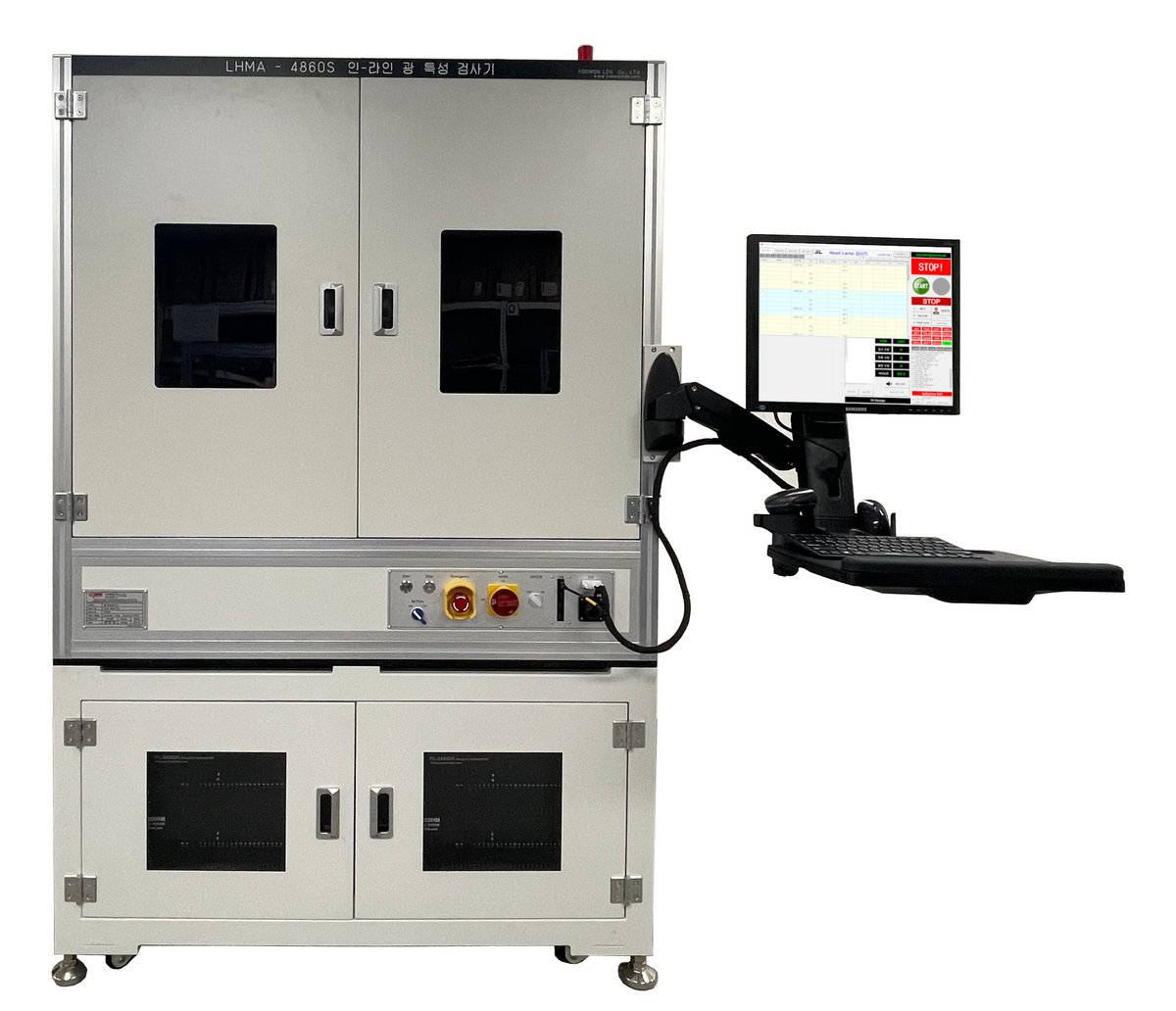

Automotive Headlamp Photometric Tester
HEADLAMP · PHOTOMETRIC INLINE Automotive LED headlamp modules

Automotive Headlamp Photometric Tester

Low current 10–500 μA, high current 1–2,000 mA. SMU 48 channels + LED vision (illuminance/chromaticity) + NTC/BIN resistance test.

Key Features · Test Items
  • Low-current lighting inspection (10–500 μA)
  • High-current lighting inspection (1–2,000 mA)
  • LED vision (illuminance · chromaticity) inspection
  • NTC / BIN resistance inspection
  • SMU (Source Meter Unit), 48 channels
  • Per-product fixture

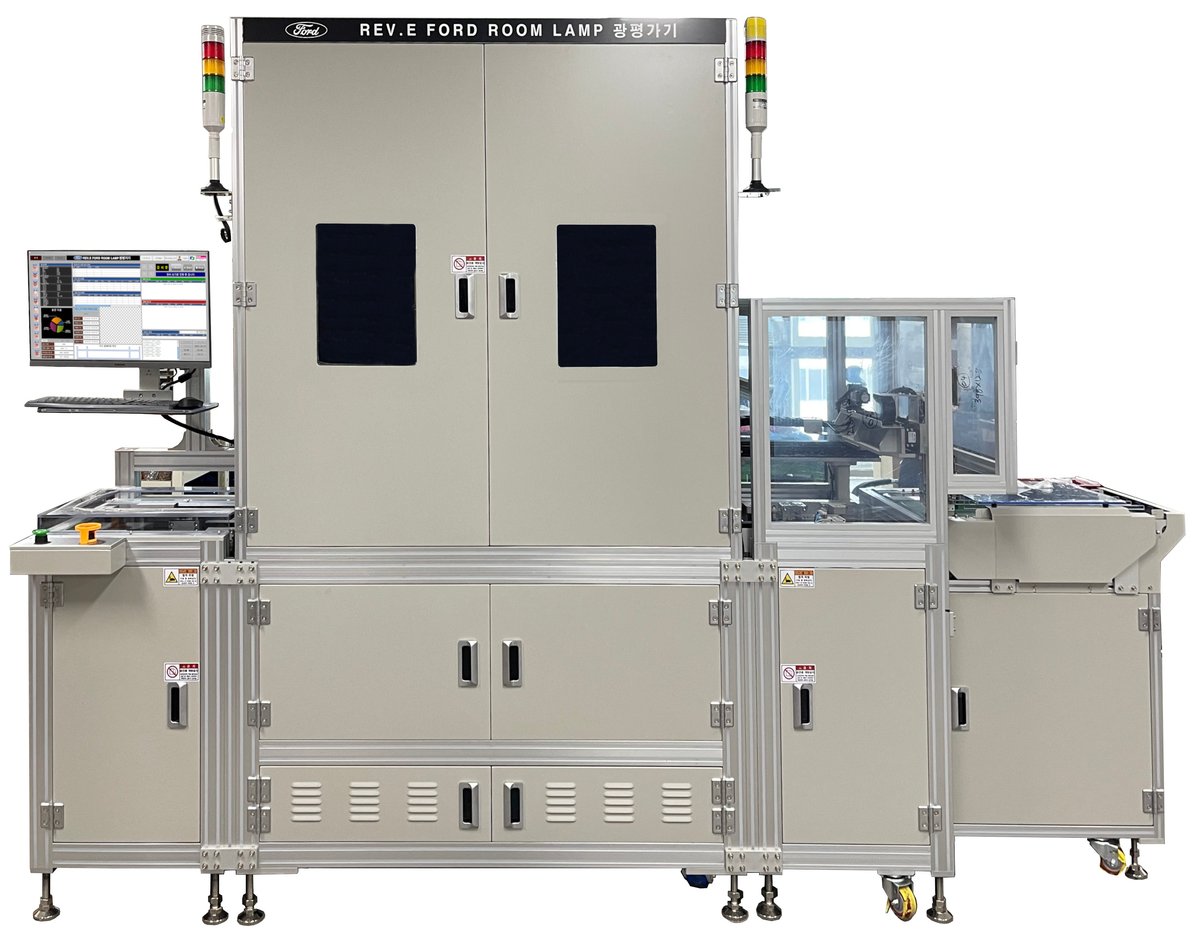

Room Lamp Tester
FORD · ROOM LAMP Ford pickup room lamp

Room Lamp Tester

Semi-inline with 4 cavity · 10 jig plate rotation. Illuminance/chromaticity/vision/terminal/electrical inspection + robotic pass/fail separation.

Key Features · Test Items
  • 4 Cavity · 10 Jig Plate Rotation
  • Semi-inline (manual loading → inspection → pass/fail separation)
  • Illuminance · chromaticity · electrical inspection
  • Vision lighting & terminal vision inspection
  • Robotic pass/fail separation discharge
  • Automatic barcode scan

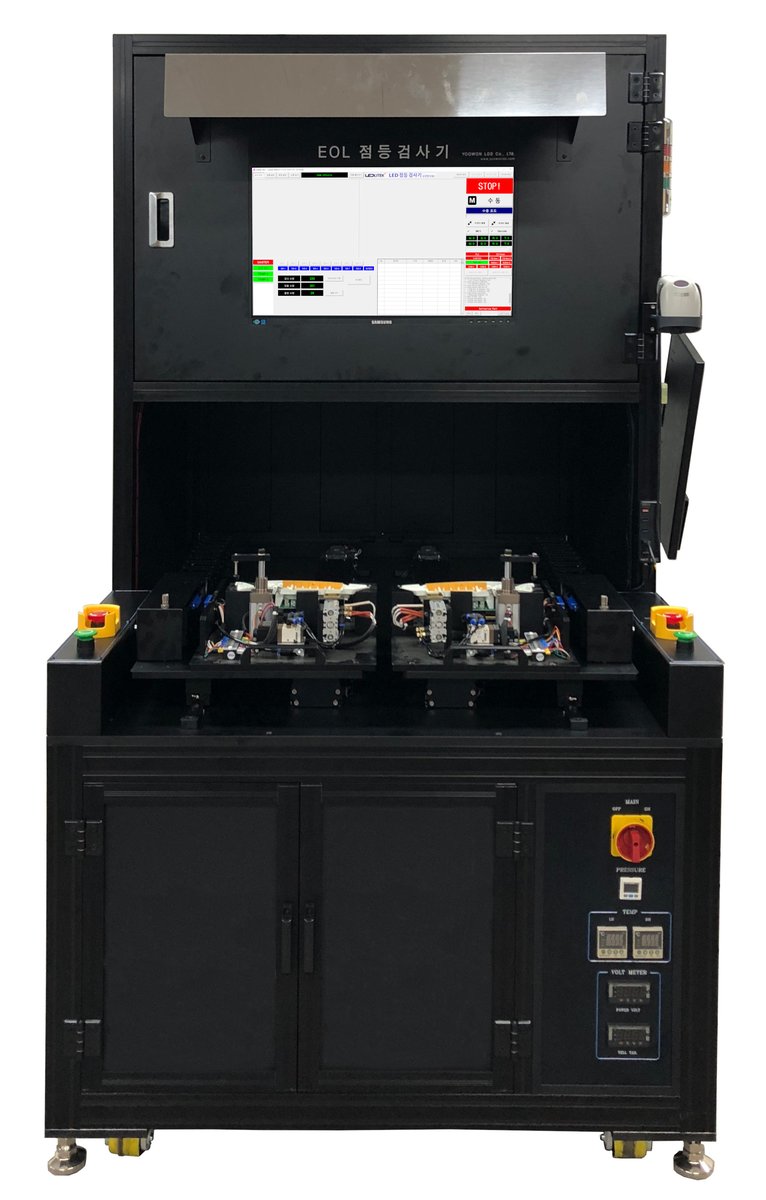

Light Distribution Tester
LIGHT DISTRIBUTION Automotive Lamp sub-assembly

Light Distribution Tester

Two-cavity inspection + 4 high-resolution cameras. Integrated vision/electrical/screw-presence checks. Major customers: SL · Lumens China · LED Lytec · Kumho HT.

Key Features · Test Items
  • LED vision inspection (illuminance & chromaticity)
  • Electrical characteristic inspection
  • Screw presence inspection
  • Automotive Lamp sub-assembly inspection
  • Two-cavity inspection
  • 4 High Resolution Camera
CUSTOM SPEC

Custom Inspection Systems

In-house design and manufacturing tailored to your vehicle model and production line.
