PRODUCT CATEGORY 04

Measuring Instruments

PRODUCT CATEGORY 04

SMU · Multi-Channel · Sub Unit
Precision Measuring Lineup

Core SMU for LED constant current/voltage control, multi-channel current & voltage meters, plus Sub Units for SMU channel distribution, selection, and polarity conversion — all order-made.

  • 6PRODUCTS
  • 96chMULTI MAX
  • 60VRANGE
  • OrderMADE
LDM-XX60 Source Measuring Unit
LDM-XX60 · SMU 24ch · 60V · 2A · Bidirectional

LDM-XX60 Source Measuring Unit

24-channel · bidirectional common · wide-range μA-to-A measurement SMU for LED constant-current control.

Specs · Features
  • Max Source Channel : 24
  • Max If Range : 1 ~ 2,000 mA (H), 1 ~ 1,000 μA (L)
  • Max Vf Range : 60 V
  • External Power Supply
  • Anode(+) / Cathode(-) Bidirectional Common
  • Order-made supported

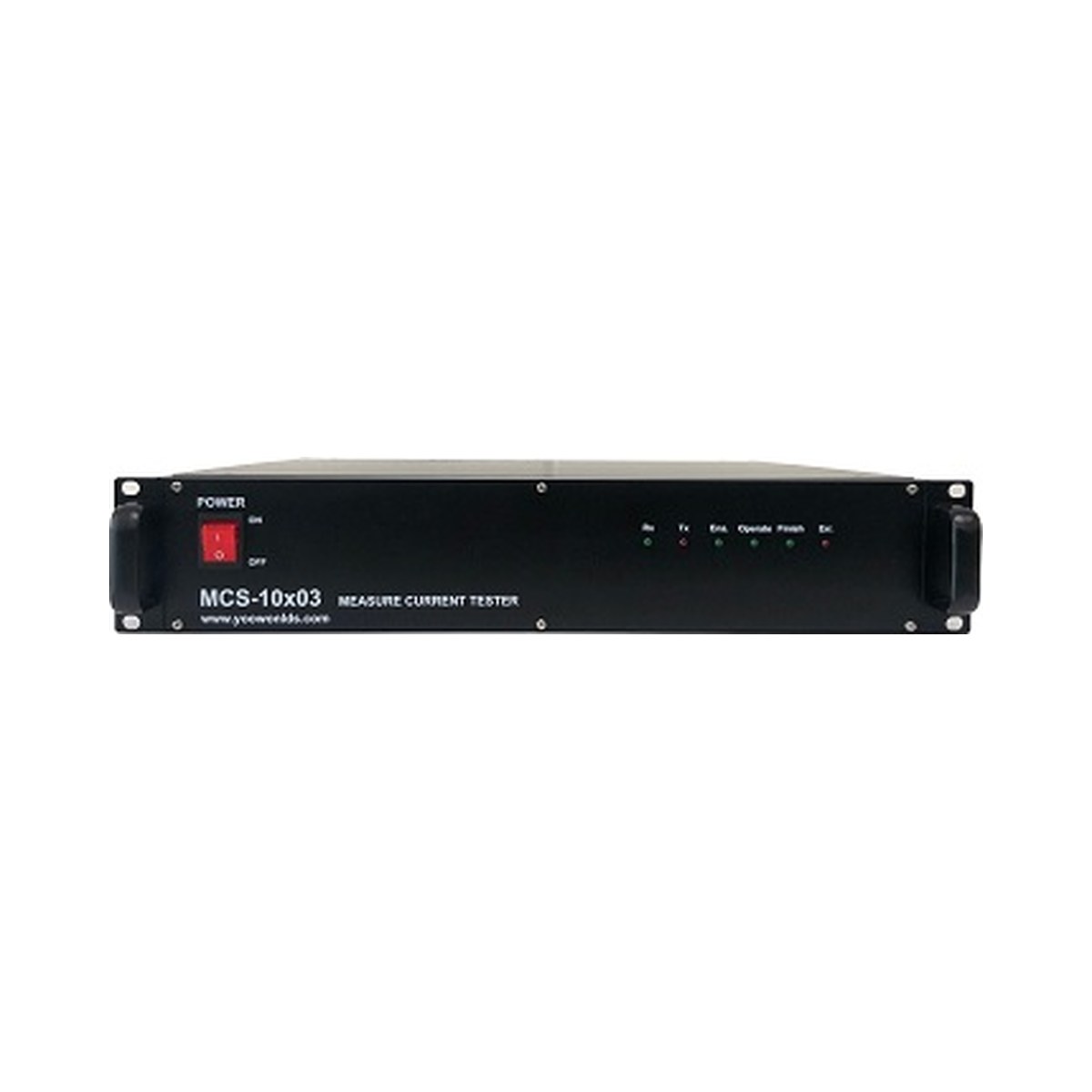

Multi-Channel Current Meter (MCS-XXx3)
MCS-XXx3 · MULTI CURRENT Line-spec custom · 10/20/30/40/50/60 channels

Multi-Channel Current Meter (MCS-XXx3)

Selectable 10–60 measurement channels. 10–2,000 mADC range precision multi-channel current measurement.

Specs · Features
  • Measurement channels (XX): 10, 20, 30, 40, 50, 60
  • Current range: 10 ~ 2,000 mADC ★
  • Common Ground
  • Low-Side Current Sensing
  • Shunt-resistor based
  • ★ Order-made supported

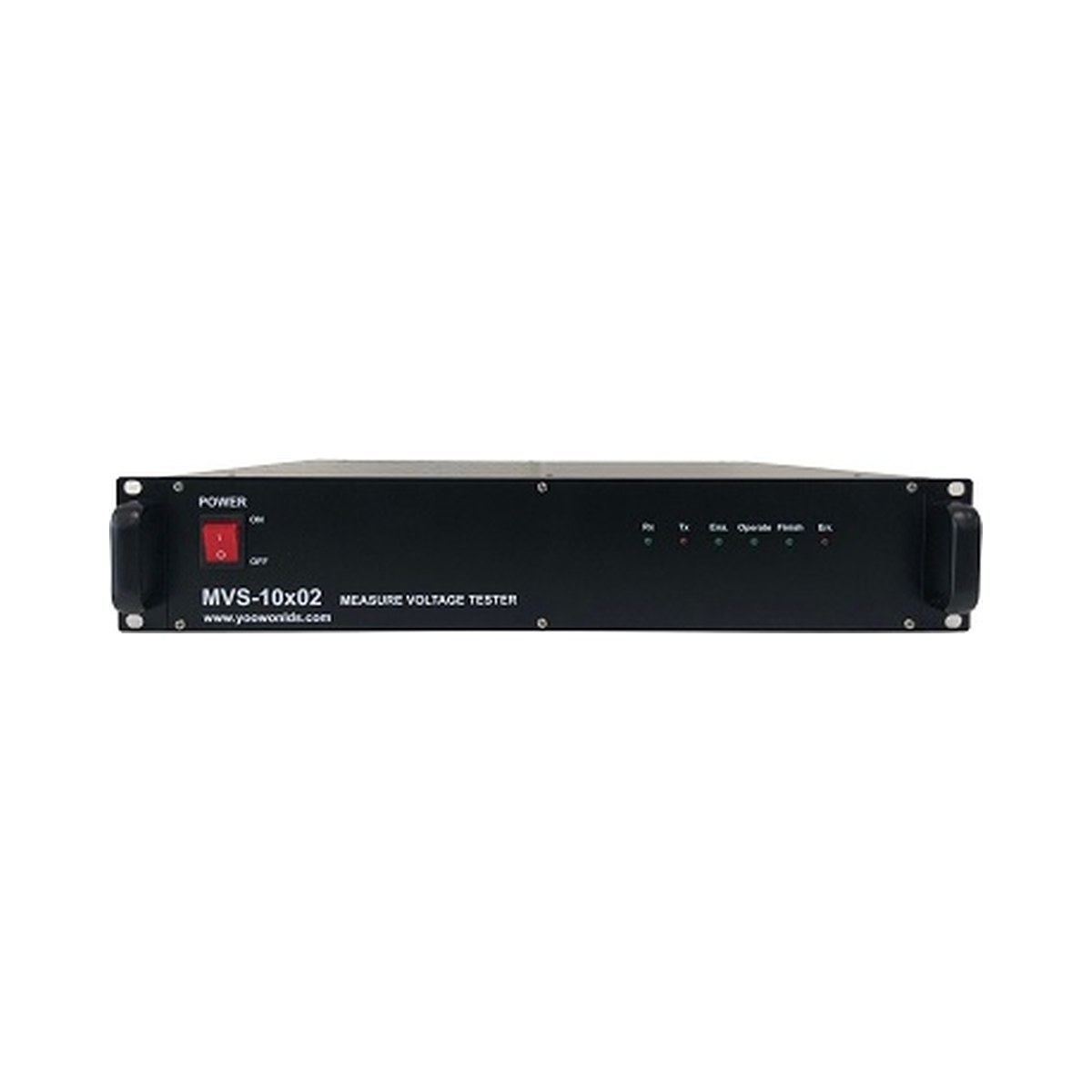

Multi-Channel Voltage Meter (MVS-XXx2)
MVS-XXx2 · MULTI VOLTAGE Line-spec custom · 10/20/30/40/50/60 channels

Multi-Channel Voltage Meter (MVS-XXx2)

0–60 VDC range multi-channel voltage measurement. Channel count made to order, 10–60ch.

Specs · Features
  • Measurement channels (XX): 10, 20, 30, 40, 50, 60
  • Voltage range: 0 ~ 60 VDC ★
  • Common Ground
  • ★ Order-made supported

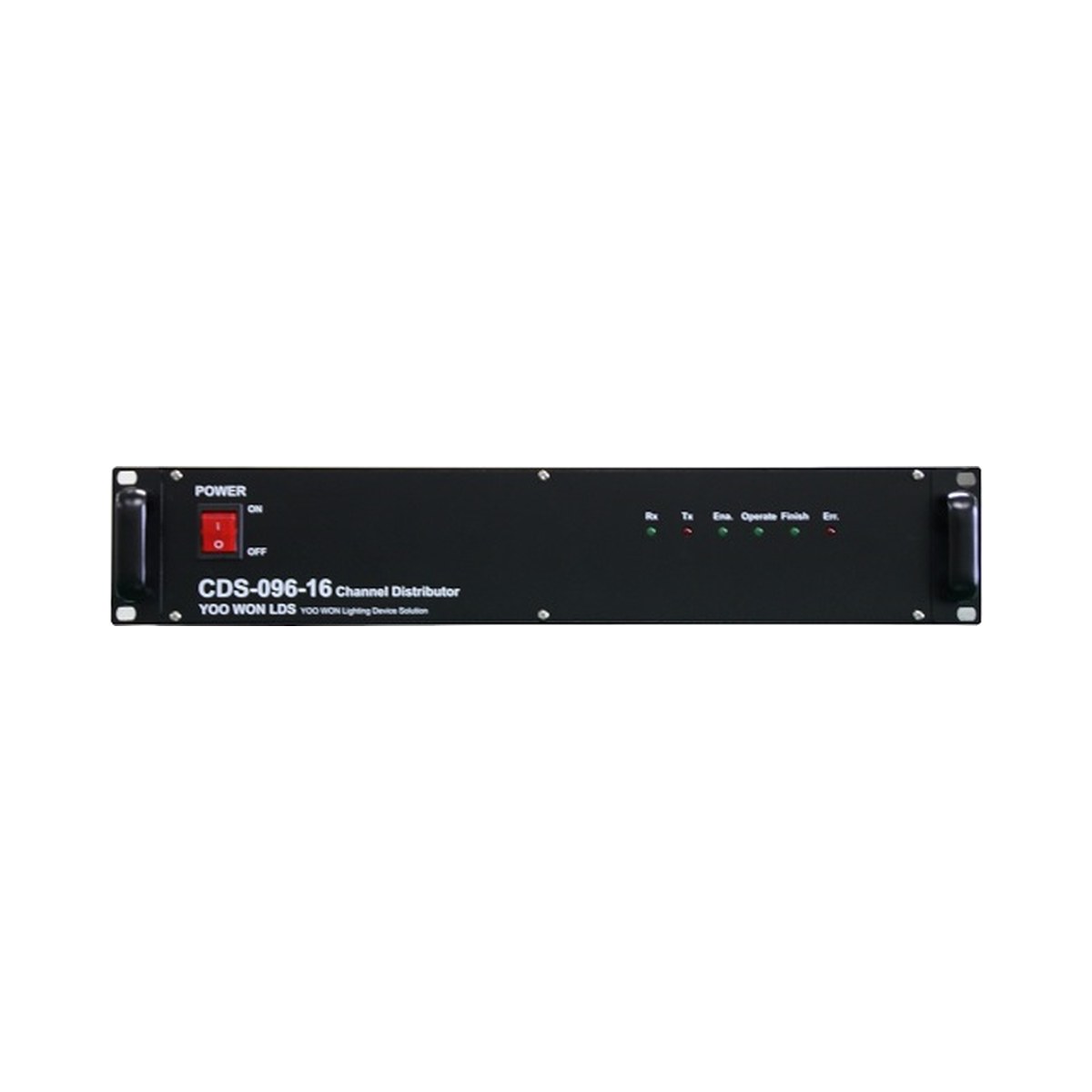

Channel Distributor (Sub Unit)
CDS-096-16 · CHANNEL DISTRIBUTOR SMU channel expansion · 16ch → 96ch

Channel Distributor (Sub Unit)

Sub Unit that expands SMU 16 channels into up to 96 channels for simultaneous multi-channel inspection.

Specs · Features
  • SMU Channel Distributor
  • 16 Channel → 96 Channel expansion
  • Current Rating: Max 500 mADC
  • Common Ground

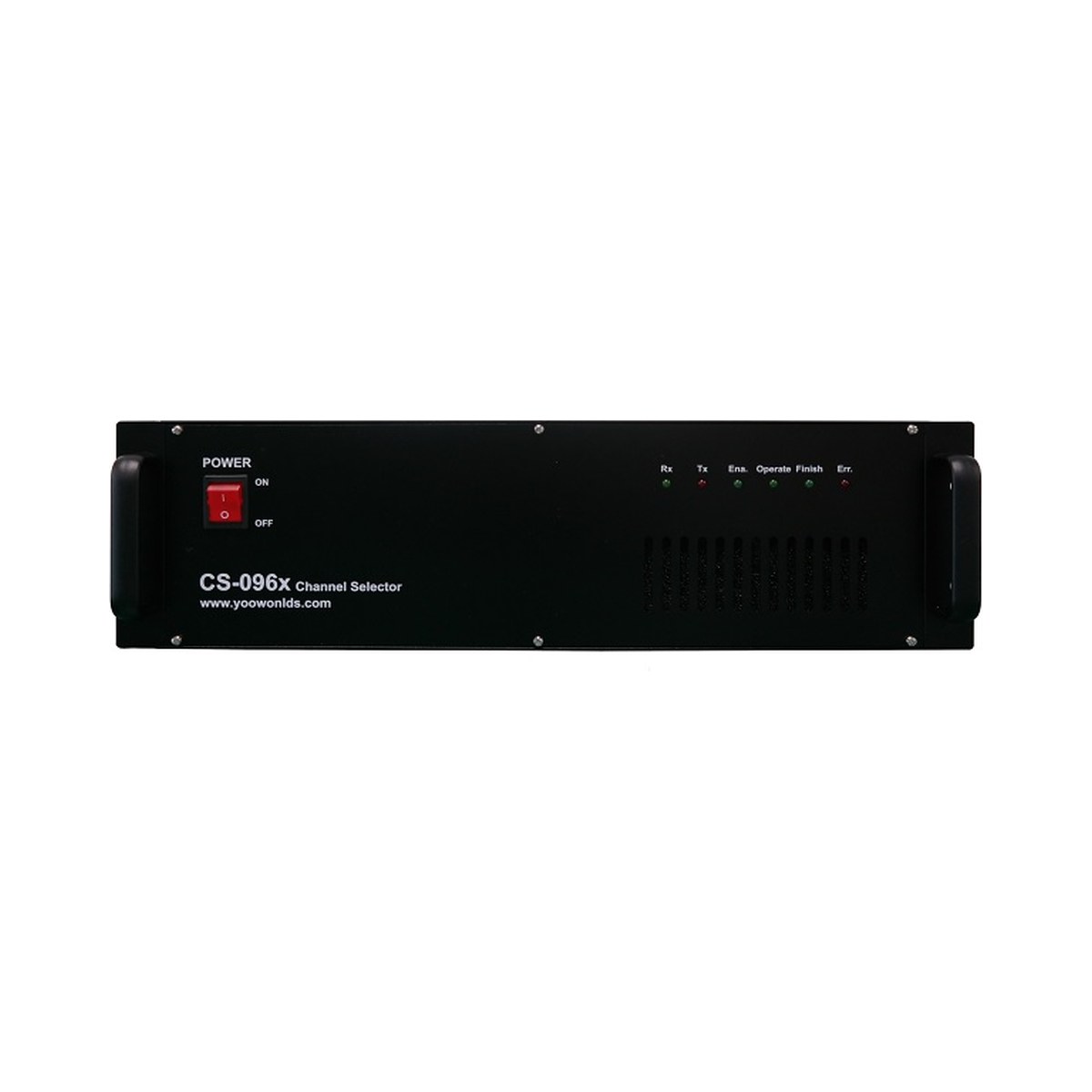

96-Channel Selector (Sub Unit)
CS-096x · CHANNEL SELECTOR SMU 96-channel routing

96-Channel Selector (Sub Unit)

SMU Sub Unit that selects and routes 96 input channels to an equal number of outputs.

Specs · Features
  • SMU Channel Selector
  • 96 Channel → 96 Channel routing
  • Current Rating: Max 1,000 mADC

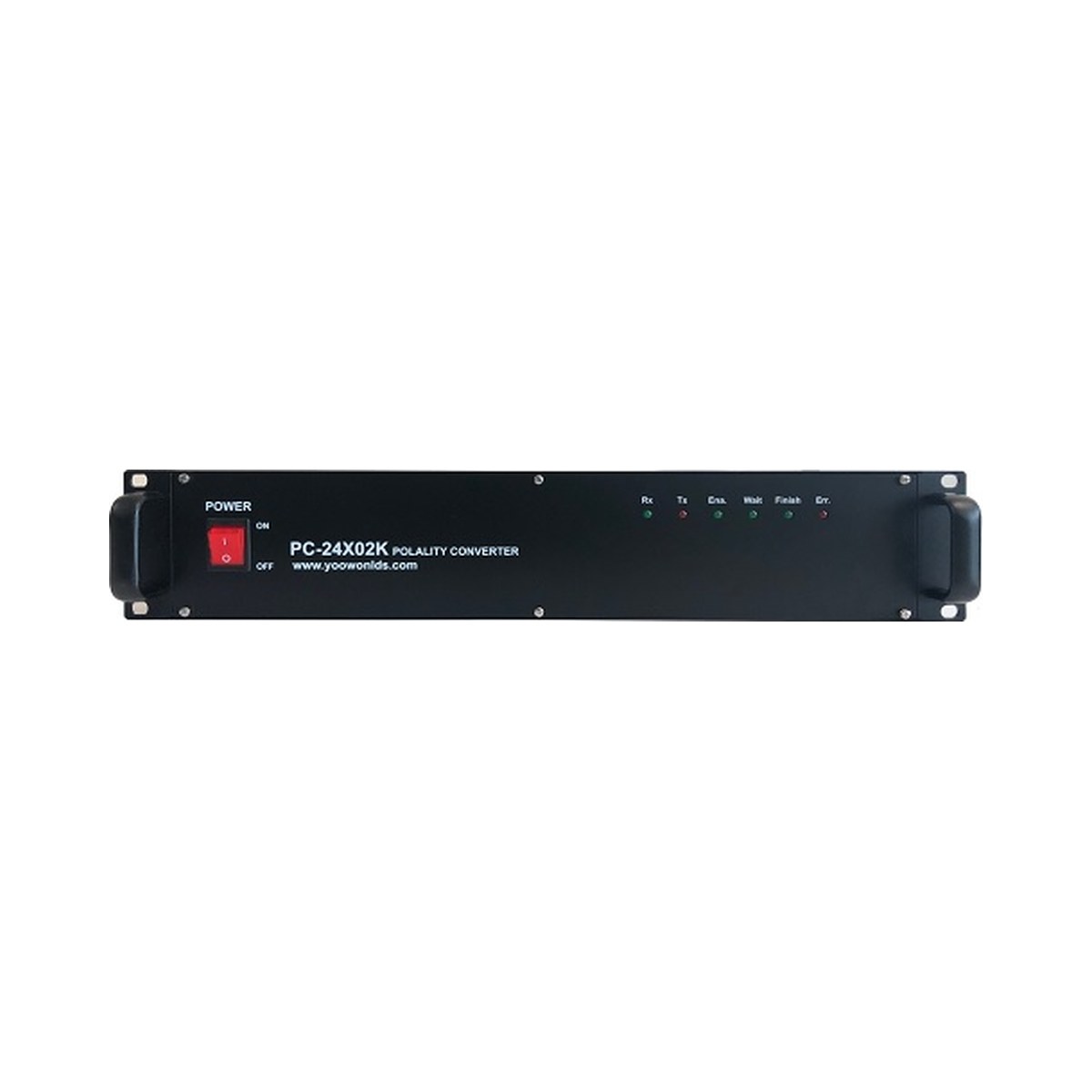

Polarity Converter (Sub Unit)
PC-24X02K · POLARITY CONVERTER SMU 24-channel polarity conversion

Polarity Converter (Sub Unit)

Sub Unit that dynamically switches 24-channel polarity (+/−) to support diverse LED module tests.

Specs · Features
  • SMU Polarity Conversion
  • 24-channel polarity switching
  • Current Rating: Max 2,000 mADC
PRECISION MEASURING

Precision Measuring · Sub Units, Built to Order

Order-made specs for SMU channel count, current/voltage ranges, and Sub Unit channel expansion.
