PRODUCT CATEGORY 03

LED Module Tester

PRODUCT CATEGORY 03

Precision photometric
inspection — μA to A

A full lineup of precision inspection for Samsung BLU and lighting LED modules — 6 systems covering DIV, illuminance, BLU high-temp, vision, AC, and optical characteristics.

  • 6PRODUCTS
  • 6MODELS
  • μA-ARANGE
  • MURAVISION

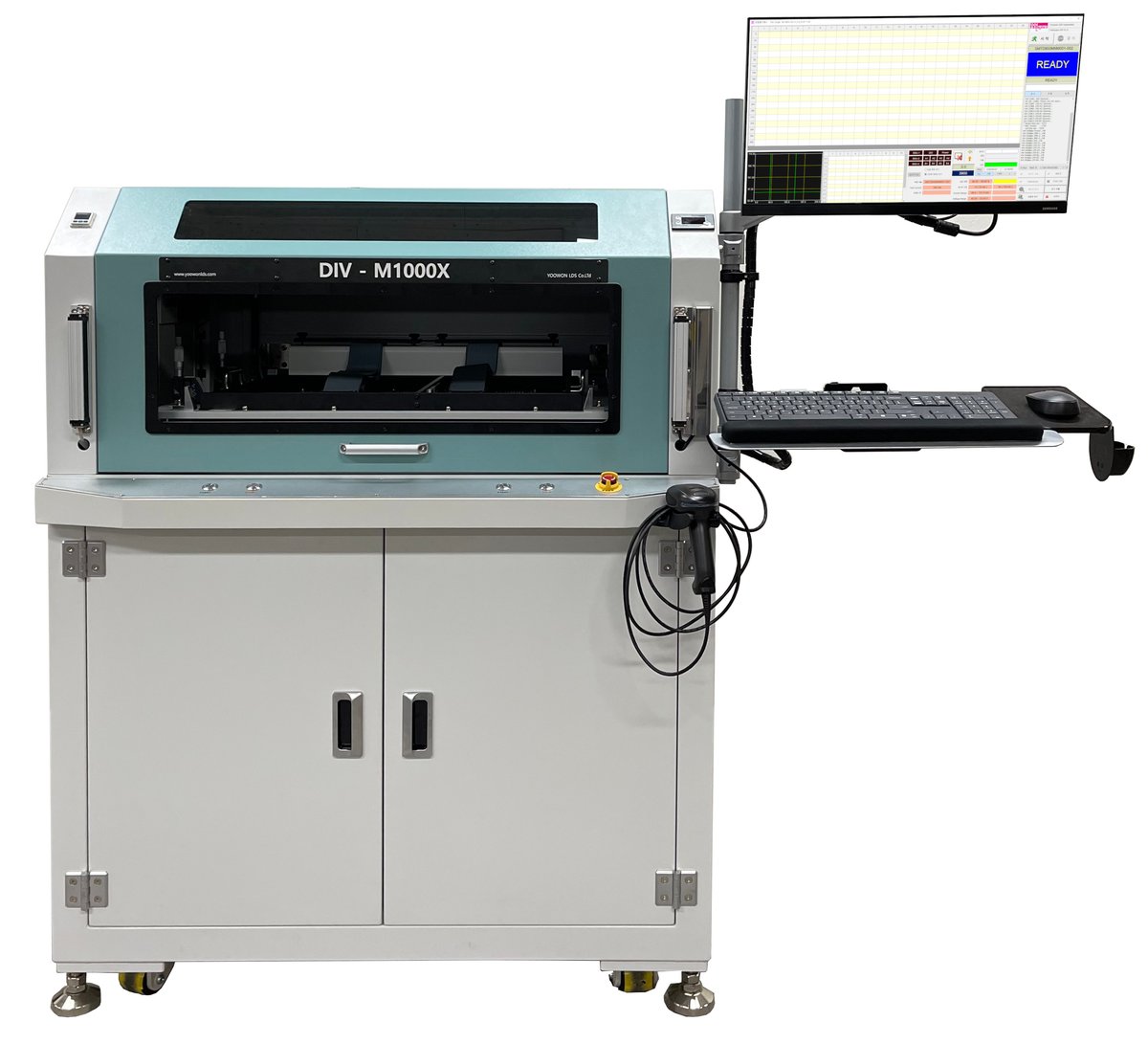

LED Module DIV Tester
LED MODULE · DIV Samsung BLU · lighting modules

LED Module DIV Tester

Individual LED brightness measurement + solder defects (cold/insufficient solder)

Features · Test Items
  • Per-LED brightness measurement sensors
  • Per-LED brightness readings & report
  • Marks repairable defective LEDs
  • SMU constant-current control
  • No Peaking · No Surge Voltage
  • Major customers: Samsung LED BLU · Samsung LED lighting modules

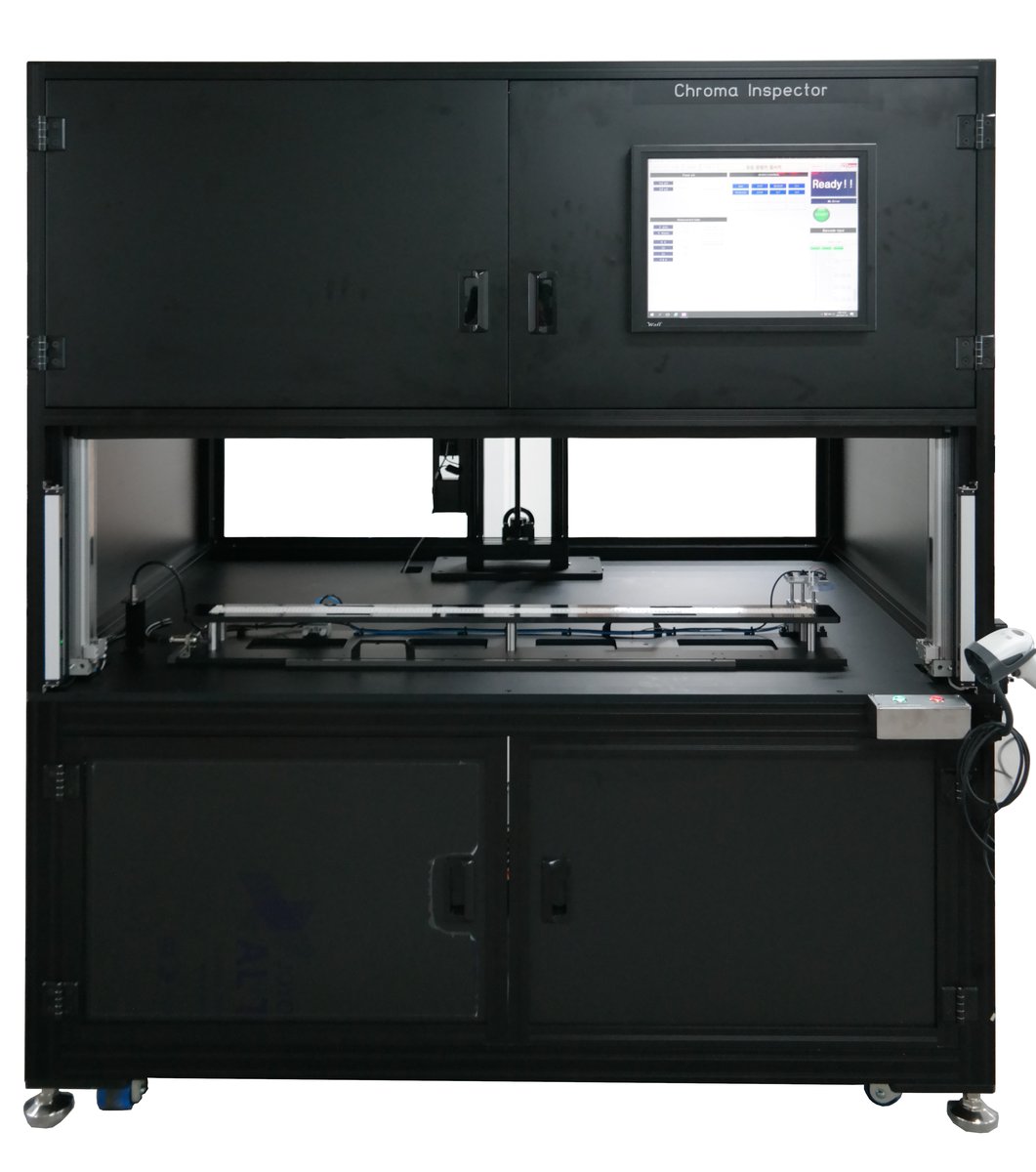

Illuminance Tester
ILLUMINANCE Samsung LED lighting modules

Illuminance Tester

Inspects modules up to 1.2 m · adjustable lux-meter height · darkroom · optional label printing.

Features · Test Items
  • LED lighting module illuminance · chromaticity · color temperature
  • Electrical characteristic inspection
  • Inspects modules up to 1.2 m
  • Adjustable lux-meter height
  • Darkroom enclosure
  • Post-inspection label print (option)

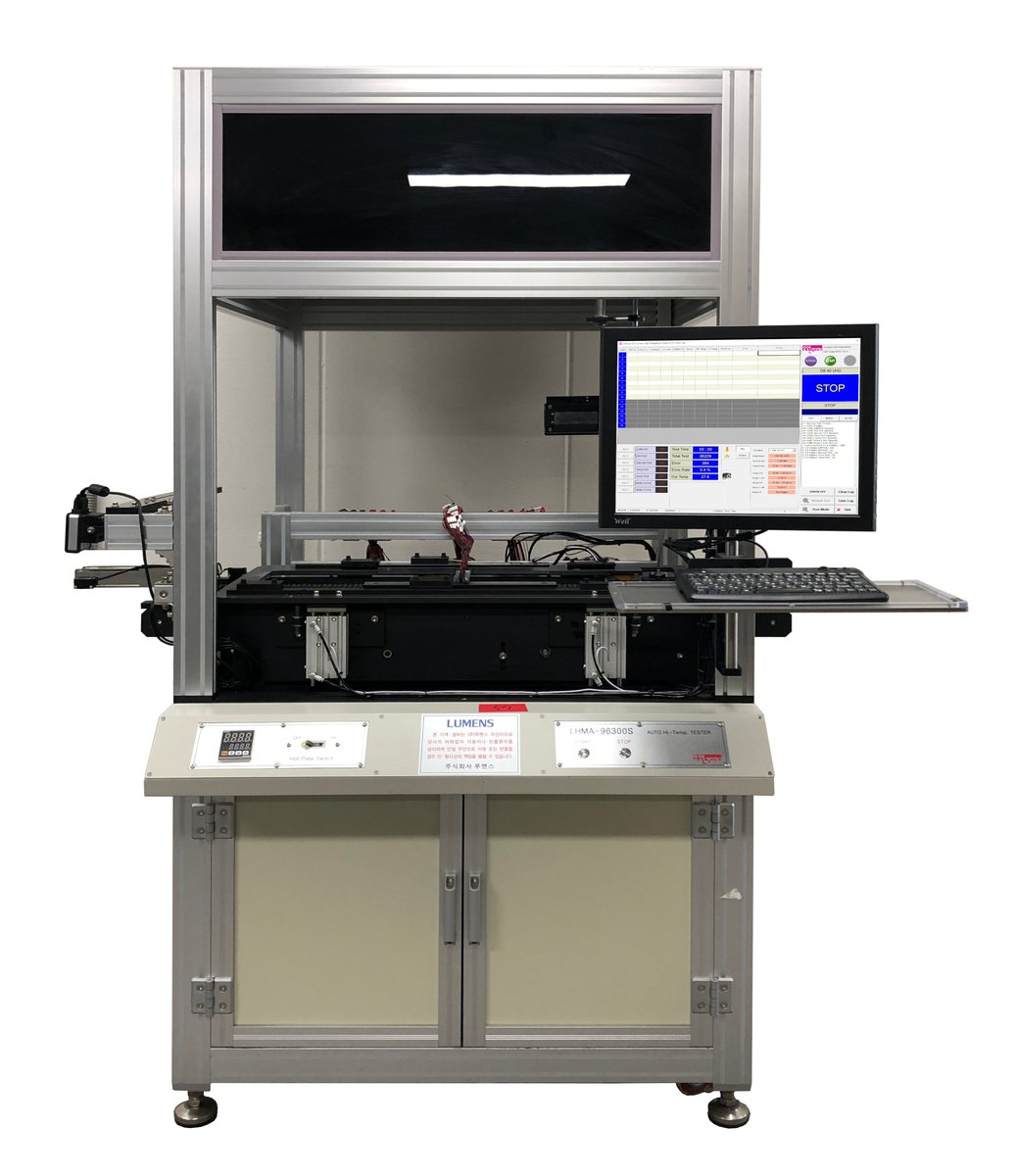

LED Module
BLU · HIGH-TEMP INLINE TV / monitor BLU post-reflow

LED Module

LED module inspection in high-temperature state after reflow soldering — detects LEDs damaged by heat. Built-in temperature control.

Features · Test Items
  • High-temp inspection after reflow soldering
  • Detects LEDs damaged at high temperature
  • Built-in temperature control for sustained high-temp
  • Module Vf · If electrical characteristics
  • Vision lighting inspection
  • Low-current lighting inspection

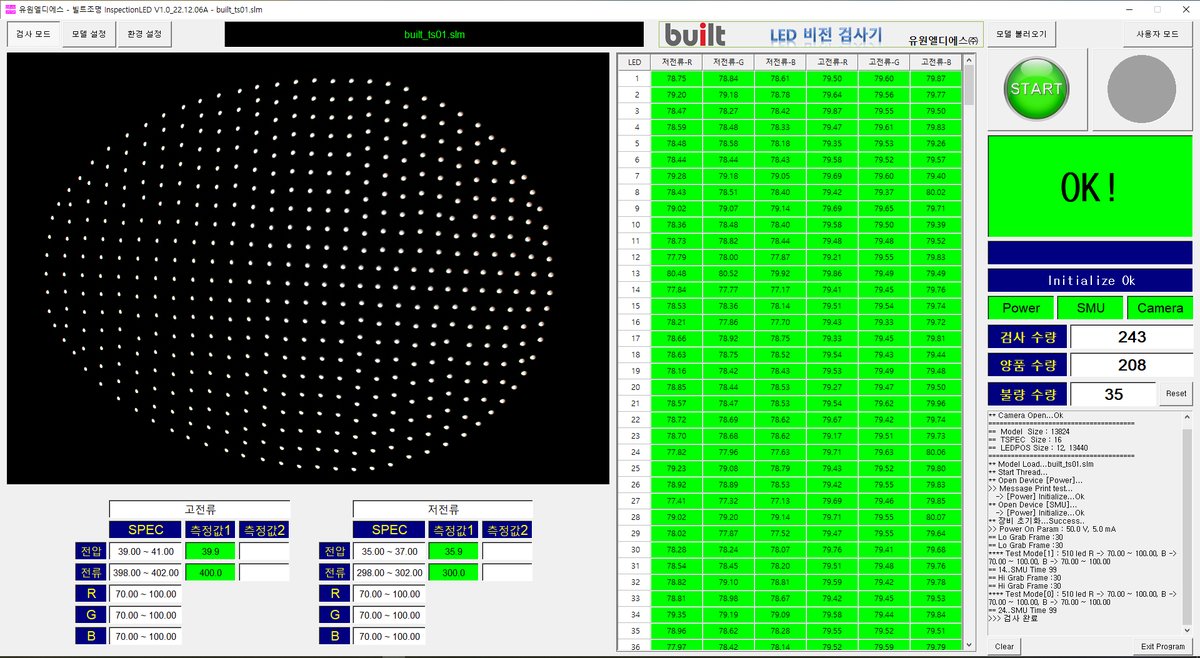

LED Lighting Vision Tester
LIGHTING · VISION Lighting LED modules

LED Lighting Vision Tester

SMU constant-current lighting test. Detects per-LED lit/unlit states + module Vf/If inspection.

Features · Test Items
  • SMU constant-current lighting test
  • Module Vf & If electrical inspection
  • Per-LED lighting inspection
  • Detect unlit LEDs
  • Vision lighting inspection

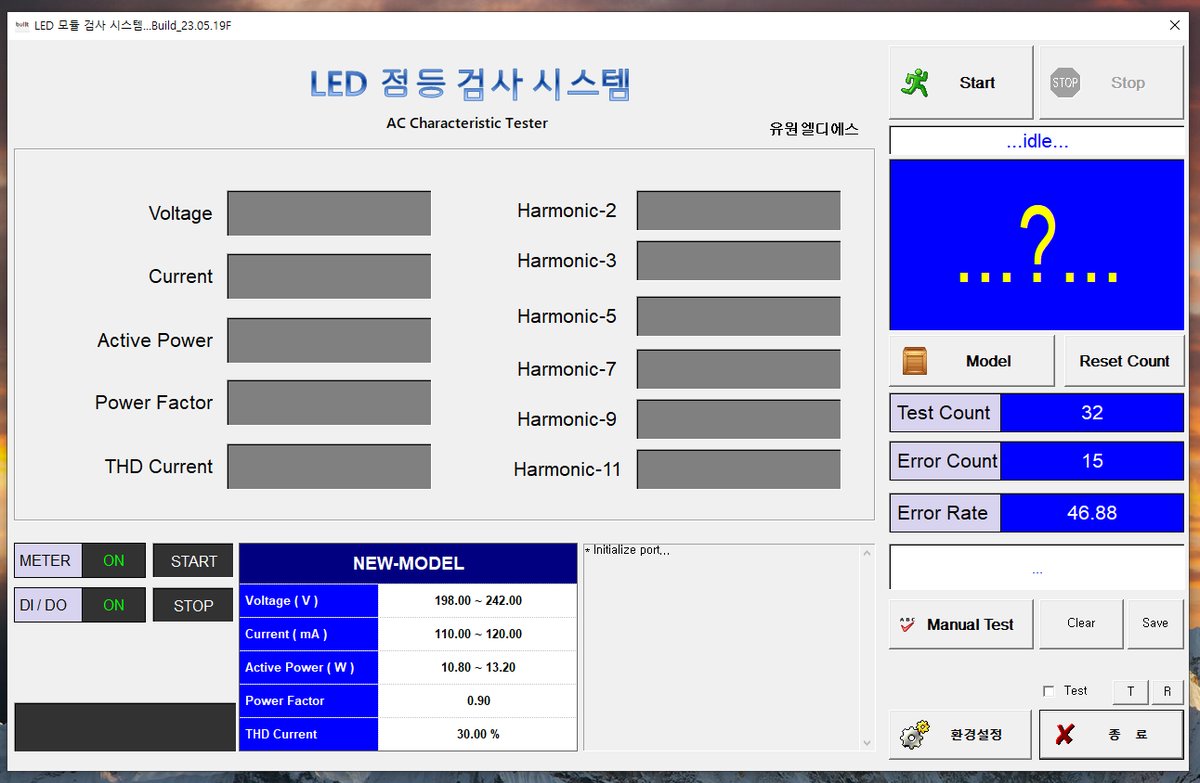

LED Lighting AC Characteristic Tester
LIGHTING · AC Pre-shipment final test for lighting LEDs

LED Lighting AC Characteristic Tester

Pre-shipment comprehensive AC electrical characteristic test for lighting LED modules + SMPS contamination check.

Features · Test Items
  • AC voltage & current
  • AC power factor · active power
  • Total Harmonic Distortion (THD)
  • SMPS contamination check for finished lighting products

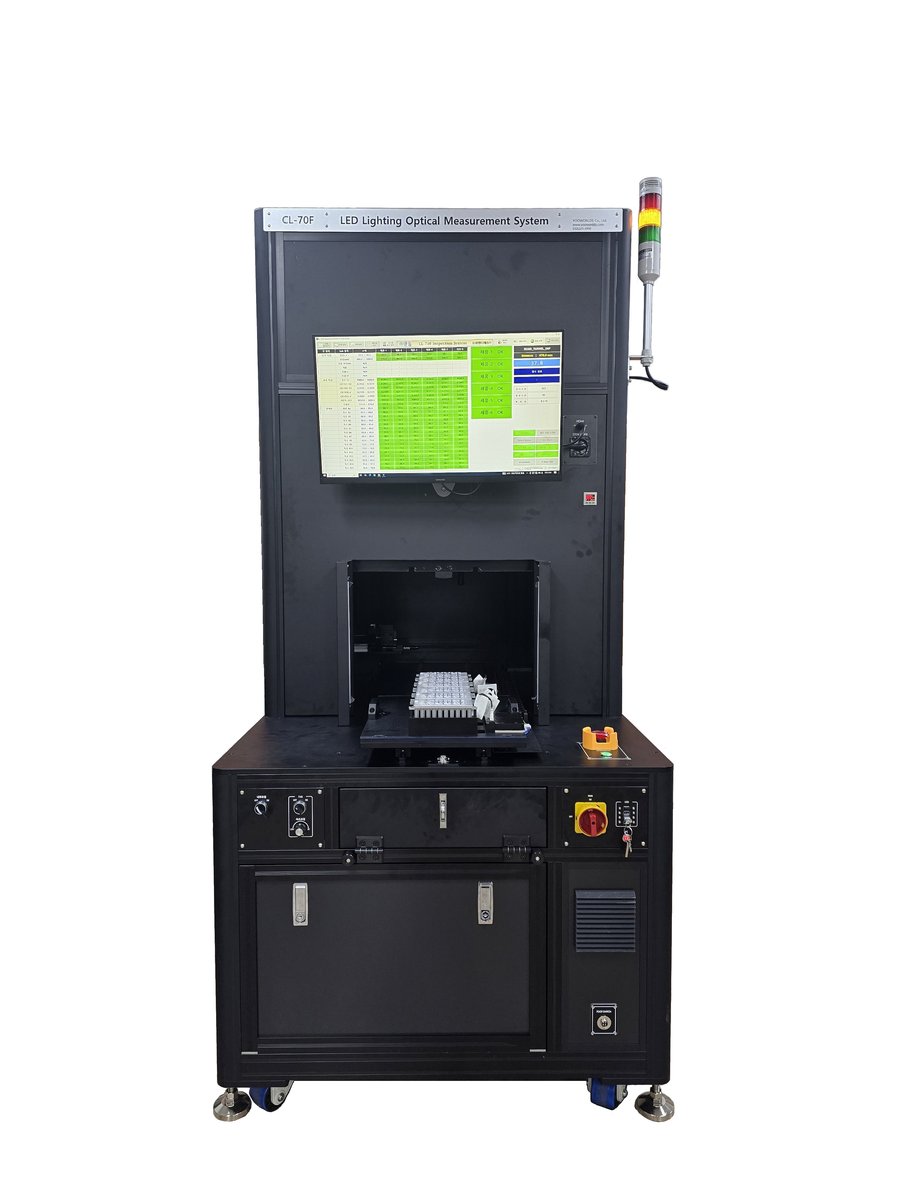

LED Lighting Optical Characteristic Tester NEW
LIGHTING · OPTICAL C-7000 Pre-shipment final test for lighting LEDs

LED Lighting Optical Characteristic Tester

AC/DC integrated electrical-optical measurement. Illuminance, color temperature, chromaticity, CRI, and THD — all in one test.

Features · Test Items
  • AC lighting electrical: voltage · current · power factor · active power
  • AC optical: illuminance · color temperature · chromaticity
  • DC lighting electrical: voltage · current
  • DC optical: illuminance · color temperature · chromaticity
  • Color rendering (CRI) · THD measurement
OPTICAL · ELECTRICAL

Full Lineup of LED Module Inspection

DIV · photometric · AC · MURA · high-temperature inline — precision measurement from microamps to amps.
